MULTITEST "Supreme" Calibration System

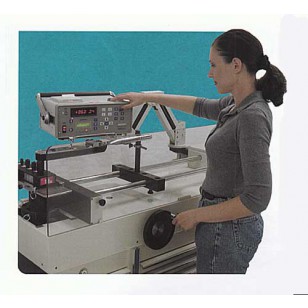

Listed here are all of the components to CDI's "Supreme" MULTITEST Torque Calibration System. This is our mid-range system for torque, which has a range from 15 in. ozs. to 2000 ft. lbs. Designed for the user who requires precision accuracy and reliability in a torque calibration system. This set includes an extension arm for long torque wrenches and 3 joint rate simulators for testing power tools.* PC compatible software and cables are also included.
* Not for use with impact and pulse tools.
CDI's Torque Only System - Part Number 539-2000-2 consists of the following:
- Part Number Description
- 2000-610-02 MULTITEST Monitor
- 2000-600-02 Mechanical Loader 2000 ft.lb. capacity
- 2000-100-02 Roller Cabinet

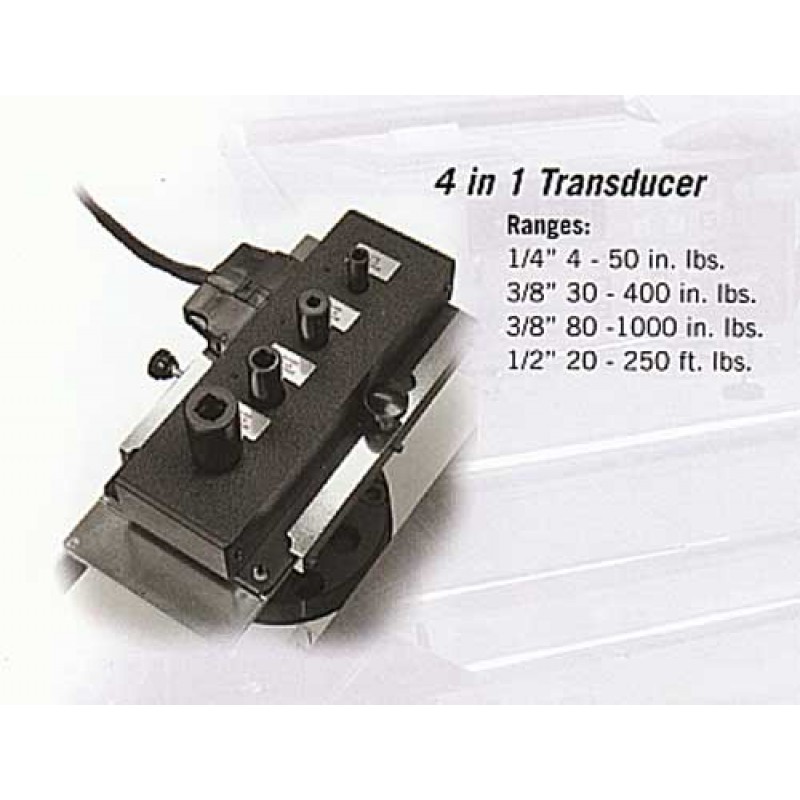

- 2000-400-02 4-in-1 Transducer Kit, 4 - 250 in.lb.
- 2000-500-02 4-in-1 Transducer Adapter Kit
- 2000-4-02 Transducer Range from 5 - 50 in.oz.
- 2000-5-02 Transducer Range from 15 - 200 in.oz.
- 2000-12-02 Transducer Range from 60 - 600 ft.lb.
- 2000-13-02 Transducer Range from 100 - 1000 ft.lb.
- 2000-14-02 Transducer Range from 200 - 2000 ft.lb.
- 2000-550-02 Extension Arm Kit for Long Torque Wrenches
- 900-0-1KIT Transducer Range from 20 - 250 ft.lb.
- 900-2-01KIT Joint Rate Simulator 400 in.lb. capacity
- 900-3-01KIT Joint Rate Simulator 1000 in.lb. capacity
- 2000-SW PC Software
- 2000-50-1 Cable from MULTITEST to PC
The MULTITEST Calibration System can be ordered several ways. Each system begins with the same three basic components: the Multitest Digital Monitor, the Roller Cabinet and the 2000 ft.lb. Mechanical Loader. We offer three different systems, the "Premier," the "Supreme" (described above), and the "Basic". These systems and their components are described in detail with each model.
In addition, you may order any component separately to build your own "custom" system. Contact BlueTools.com to discuss your torque calibration needs.
