Cleco Swingbar Nutrunners, 64 Series, 19-2837 ft.lb., 1/2 - 1-3/4" Bolts

$0.00

Quick Overview

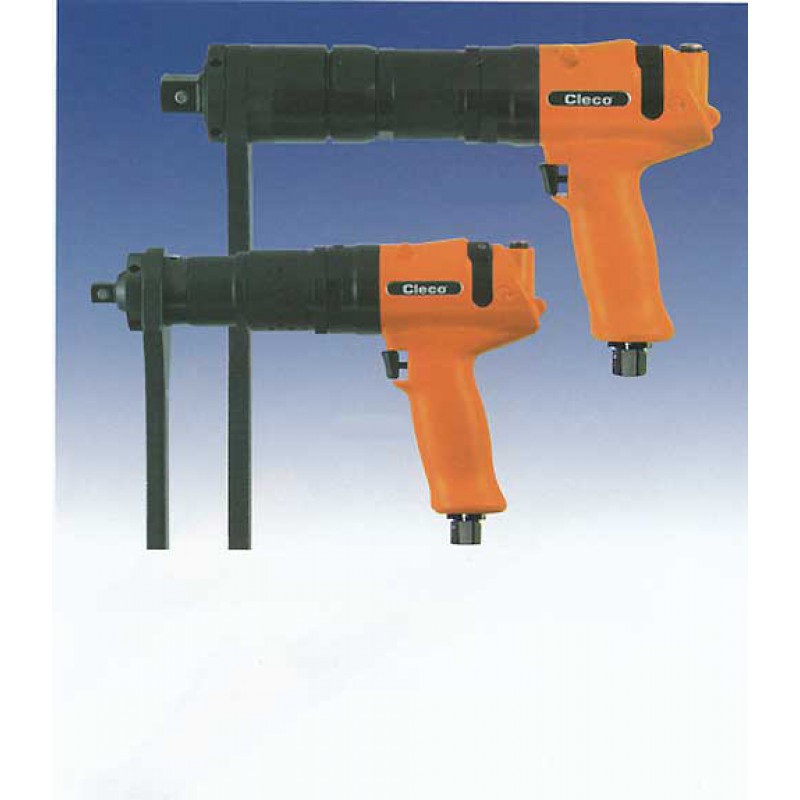

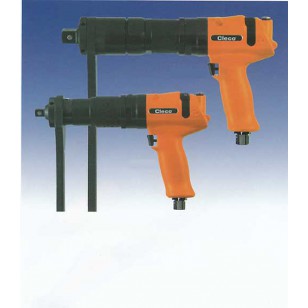

Cleco Swingbar Nutrunners, 64 Series, 19-2837 ft.lb., 1/2 - 1-3/4" Bolts

Details

The Cleco 64 Series Swingbar Pistol Grip  nutrunners are designed for M8-M42 fasteners.  These powerful Swingbar pneumatic nutsetters cover a wide torque range from 26-3850 Nm.  The 64 Series Swingbar Nutrunners incorporate an innovative motor design that provides more usable power in a smaller package.

The Cleco 64 Series Swingbar Nutrunners are available with either a Clecomatic clutch or a Stall-type motor.

With a Clecomatic clutch,  the nutrunner shuts off the instant the clutch reaches its adjustable preset torque.  This action provides an accurate method of controlling torque without sacrificing tool speed.  Fluctuating air pressure has little to no effect on torque as long as the tool receives sufficient pressure from the air supply to trip the clutch.  Clecomatics are ideally suited for reverse applications because the clutch transmits more power in reverse than forward.  The 64 Series Clecomatics come with an externally adjusted and indicated clutch.  "Jeweled" bearings fully support the clutch assembly for longer service life.

In stall-type air controlled nutrunners, the air motor is connected to the output spindle by planetary gearing and angle heads.  Clecomatic nutrunners stall the instant the clutch reaches the adjustable preset torque, which controls torque without sacrificing tool speed.  Stall-type pneumatic nutsetters can produce accurate torques, especially on applications with varying torque rates.  However, the operator can manage torque output by contolling the throttle and the air pressure.  Stall-type pneumatic nutrunners are recommended for applications requiring light-weight tools, or where fastener accessibility prevents the use of other types of tools.  Stall-type nutsetters are NOT recommended for high torque applications unless the application permits the tool to safely rest or react against a bracing point or the work, in order to remove the torque reaction from the operator.

Improved ergonomically-designed handles and composite exhaust deflector pipes reduce noise and operator fatigue.   Precision-machined bevel gears and angle heads eliminate shims for easy maintenance and longer gear life.  An access plug simplifies lubrication.  A durable, polymer-coated angle head reduces system damage.   Cleco nutsetters offer the best power-to-weight ratio, and they offer the most performance, the highest level of accuracy (backed by the certification of ISO 5393), and the greatest flexibility in its class of pneumatic tools.  Cleco designs the 64 Series Nutsetter for fast operation, low scrap, and improved product quality.  In addition, the Cleco 64 Series Pneumatic Nutrunners operate with reduced energy costs, longer operating life, fewer replacement parts, and lower service costs.   Cleco 64 Series Swingbar Nutsetters feature:

  • Torque Range:  19-2837 ft.lb./34-3850 Nm
  • Bolt Size:  1/2 - 1-1/2"/M8 - M42
  • Stall-type or Selectork
  • Pistol Grip
  • Trigger Start
  • Reversible
  • Drive:  1/2 - 1-1/2" Square
  • Free Speed RPM:  5 - 725
  • Length:  11.5 - 21.5" (approx.)
  • Weight:  5.1 - 32.2 lb. (approx.)
  • Contact BlueTools.com at 1-336-282-2020 to spec your specific Cleco 64 Series Swingbar Nutrunner.

Additional Information

Manufacturer Cleco
Brand Cleco
Exhaust N/A
Features N/A
