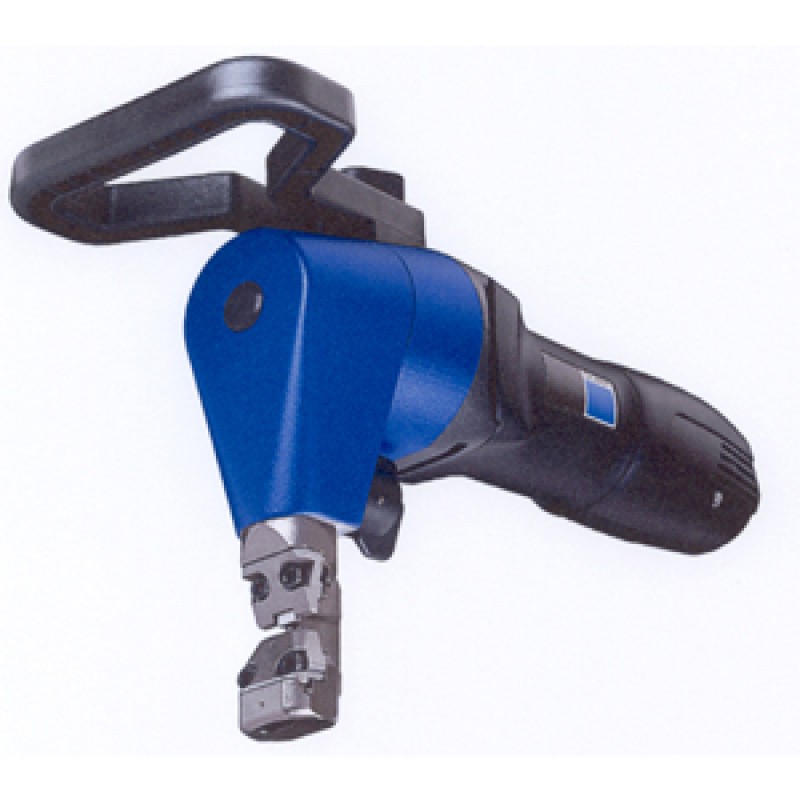

Trumpf Electric Nibbler, N500, 5 feet per minute

$3,732.00

Quick Overview

Trumpf Electric Nibbler, N500, 5 feet per minute

Details

Trumpf (TruTool) nibblers work on the principle of a "punching" cut.  Downward chip discharge guarantees a clear view of the working area.  The Trumpf Nibbler can be positioned in different directions, depending on the application.  Trumpf nibblers provide maximum mobility in many applications including:  nuclear decommissioning, recesses and fitting work, sheetmetal work, containers, recycling, plumbing and maintenance, car body work, demolition and dismantling.

  • Suitable for use with high tensile materials
  • Easy to change tools, which can be resharpened multiple times
  • Features above-average tool life
  • Cut quality remains consistently high
  • Five year manufacturer warranty

The N500 Trumpf (TruTool) Nibbler is a versatile, medium weight nibbler with an excellent price-performance ratio.  No extra tools are required to exchange the punch and die!  For sheet thickness range over 0.14 inch, Trumpf electric nibblers use a rectangular punch

  • The only nibbler in its class that can cut 90o bends (crash barriers, tanks, containers)
  • Easily cuts edges, weldments and doubled sheets, regardless of angle
  • Adjusts to 3 cutting directions
  • Cut-off of coil stock.  Optional chip collection device (chip bag) available
  • Optional Reverse Cutting available
  • Electronically controlled "soft start"
  • Case included

Max. Sheet Thickness

Trumpf (TruTool) N500E

    Mild Steel

3/16 inch

    Stainless Steel

.135 in.

    Aluminum

.276 in.

Approx. Working Speed

4.5 ft./min.

Smallest Radius

3.2 in.

Smallest Starting Hole

1.25 in.

Strokes at Nom. Load

600/min.

Motor Capacity

12 Amps

Weight (without cable)

8.5 lbs.

Protective Insulation

Class II

Call BlueTools at 336-282-2020 to order your Trumpf TruTool Nibbler and accessories today!

"""

Additional Information

Manufacturer Trumpf
Brand Trumpf
Exhaust N/A
Features N/A
