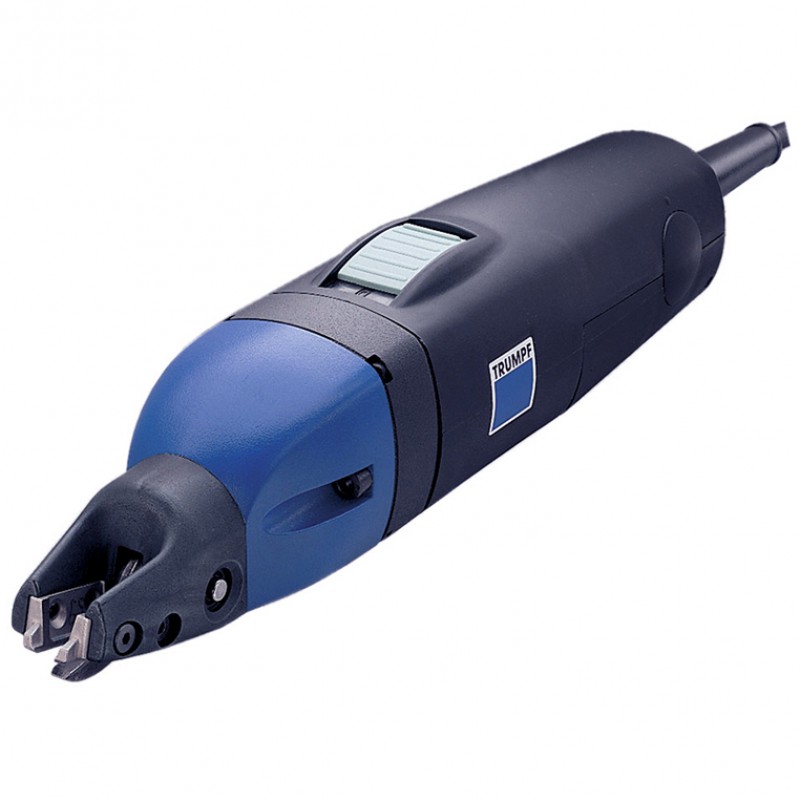

Trumpf (TruTool) Double Cut Electric Slitting Shears, C160

$800.00

Quick Overview

Trumpf (TruTool) Double Cut Electric Slitting Shears, C160
OR

Details

Trumpf (TruTool) Double Cut Slitting Shears are designed for maximum user-friendliness.  Use the quick-release bolt to exchange cutters on your Trumpf (TruTool) Cutter safely and quickly - no tools needed!  Trumpf's fixed cutters are reversible for doubled tool life, and you can set the optimum cutting clearance by choosing from a variety of cutters.   A selection of four, long wearing cutters offers optimum performance in any application.  The Trumpf (TruTool) Electric and Cordless Shears offer an excellent view of the workpiece for precision cutting according to a scribe line or curve.  With Trumpf's distortion-free cutting, no refinishing is necessary.  Strips come out perfect thanks to the parallel stop, which is available as an option.  Trumpf also offers an optional workstation for stationary operations.  Trumpf (TruTool) Slitting Shears are the perfect cutters for air duct construction (including spiral-seam tubes), house-front construction (rain gutters), the aviation industry, car-body works, metal studs, and ventilation works.

Trumpf (TruTool) Double Cut Electric Slitting Shears, C160:

Max. Sheet Thickness

Straight Cutter

Radius Cutter

Cr (HSS) Cutter

    Steel, 57K tensile, in./ga.

.063/16

.040/19

.063/16

    Steel, 85K tensile, in./ga.

.047/18

.032/21

.047/18

    Aluminum, 35K tensile, in.

.078

.048

.078

Min. Start Hole Dia., in.

.60

.32

.60

Smallest Radius, in.

3.5

1.2 - 1.6

6.3

Working Speed, ft./min.

20 - 33

Strokes at Nom. Load/min.

3800

Motor Rating

3.1 Amps

Weight (without cable)

3.1 lbs.


  • Double Cut
  • 11.06" x 2.44"
  • Optional Parallel Stop (1-3/8 - 11-3/4" strips), Order No. 108-144634
  • Optional Stationary Work Station, 108-143439
  • Additional Cutters may be ordered separately
  • Five year manufacturer warranty

Call BlueTools at 1-336-282-2020 to order your Trumpf (TruTool) Double Cut Slitting Shears C 160, cutters, and accessories today!



Additional Information

Manufacturer Trumpf
